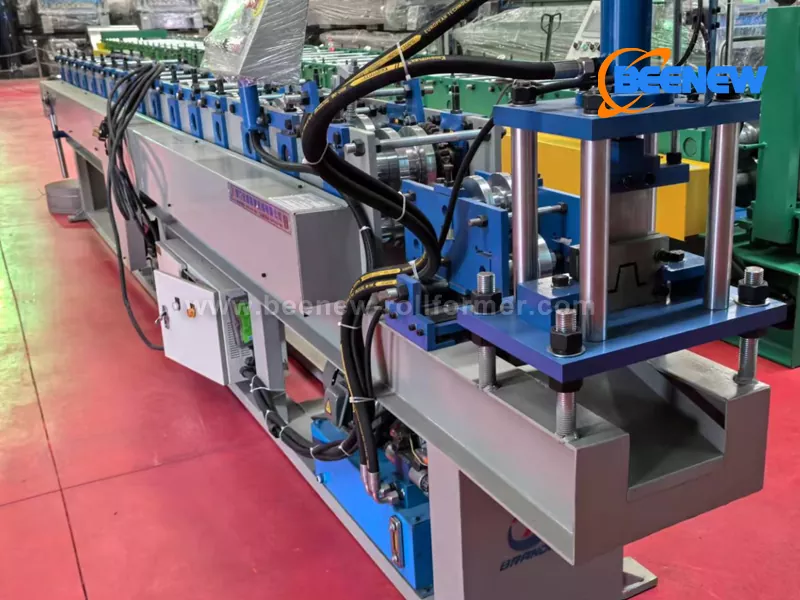

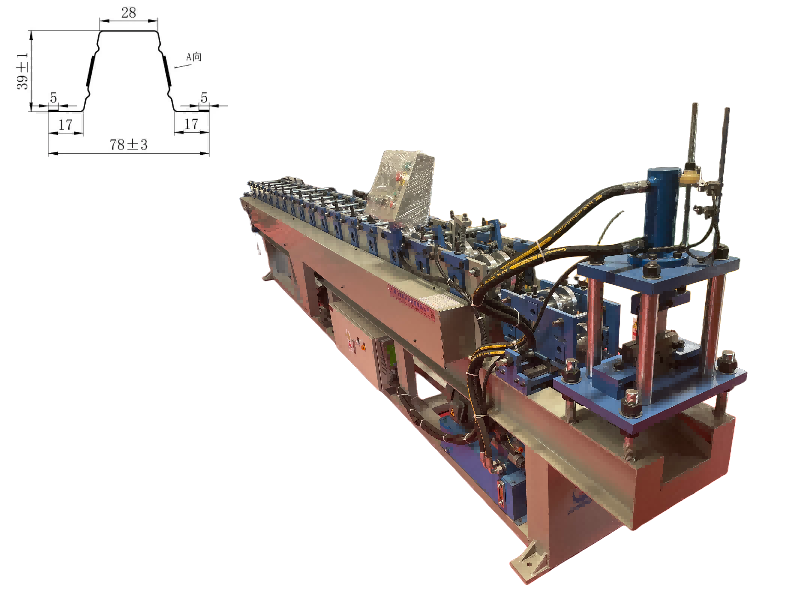

Light Keel Roll Forming Machine

Beenew light keel roll forming machine is used for the production of lightweight structural components, primarily made from steel or aluminum, that are employed in construction and building projects.

Send Inquiry

Product Description

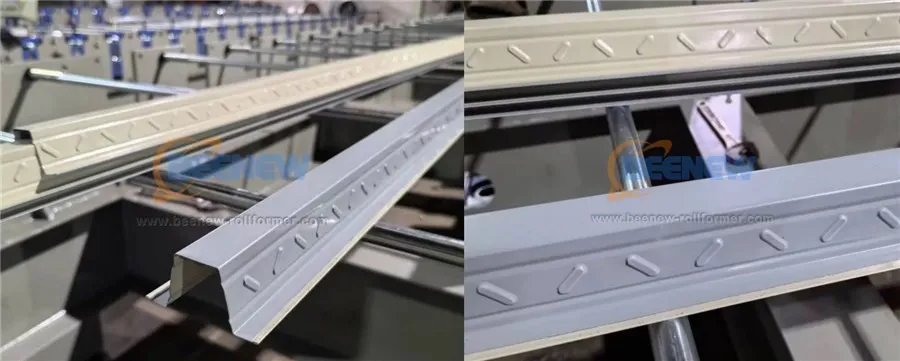

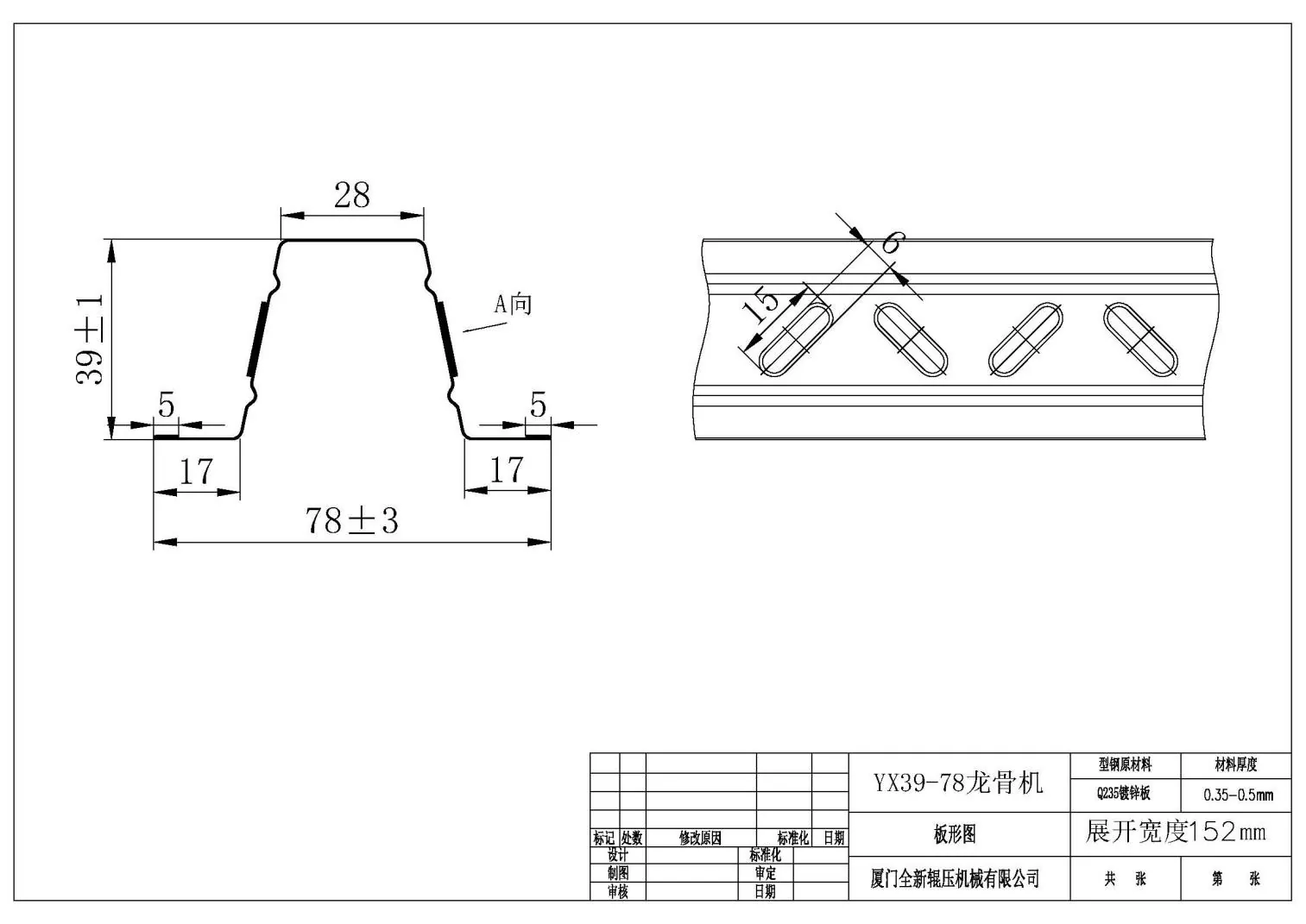

Profile of the Keel

Product Parameter

Item	Parameters
Material	0.35-0.5mm Q235 galvanized cold rolled steel strip
Feeding Width	152mm
Effective Width	78mm
Driving Motor	5.5kw
Hydraulic Station Power	3kw
Roller Material	45# steel, heat-treated, hard chrome coated
Shaft Diameter	65mm
Forming Station	14 stations
Forming Speed	About 16-18M/Min
Machine Frame	H200

Features

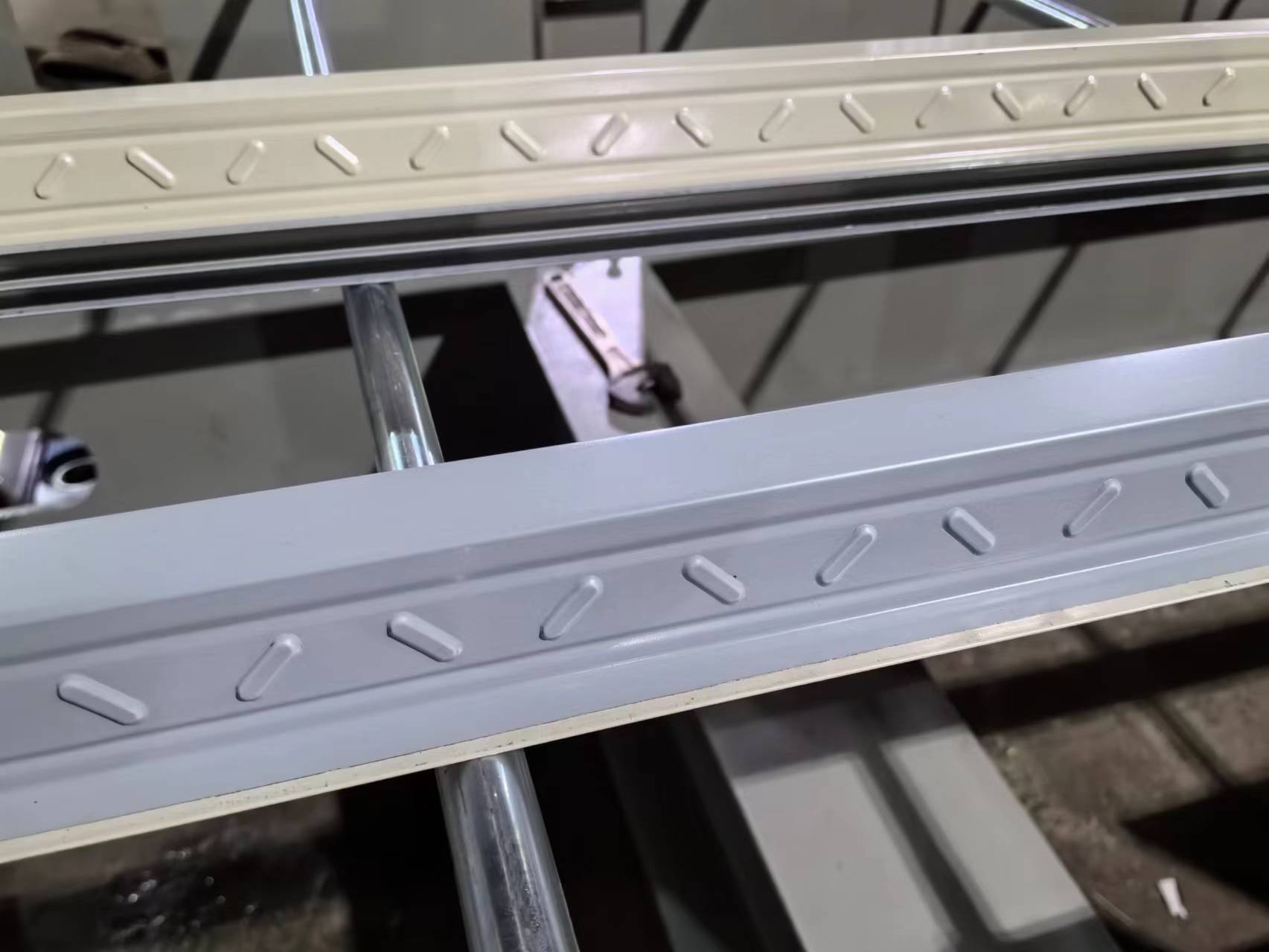

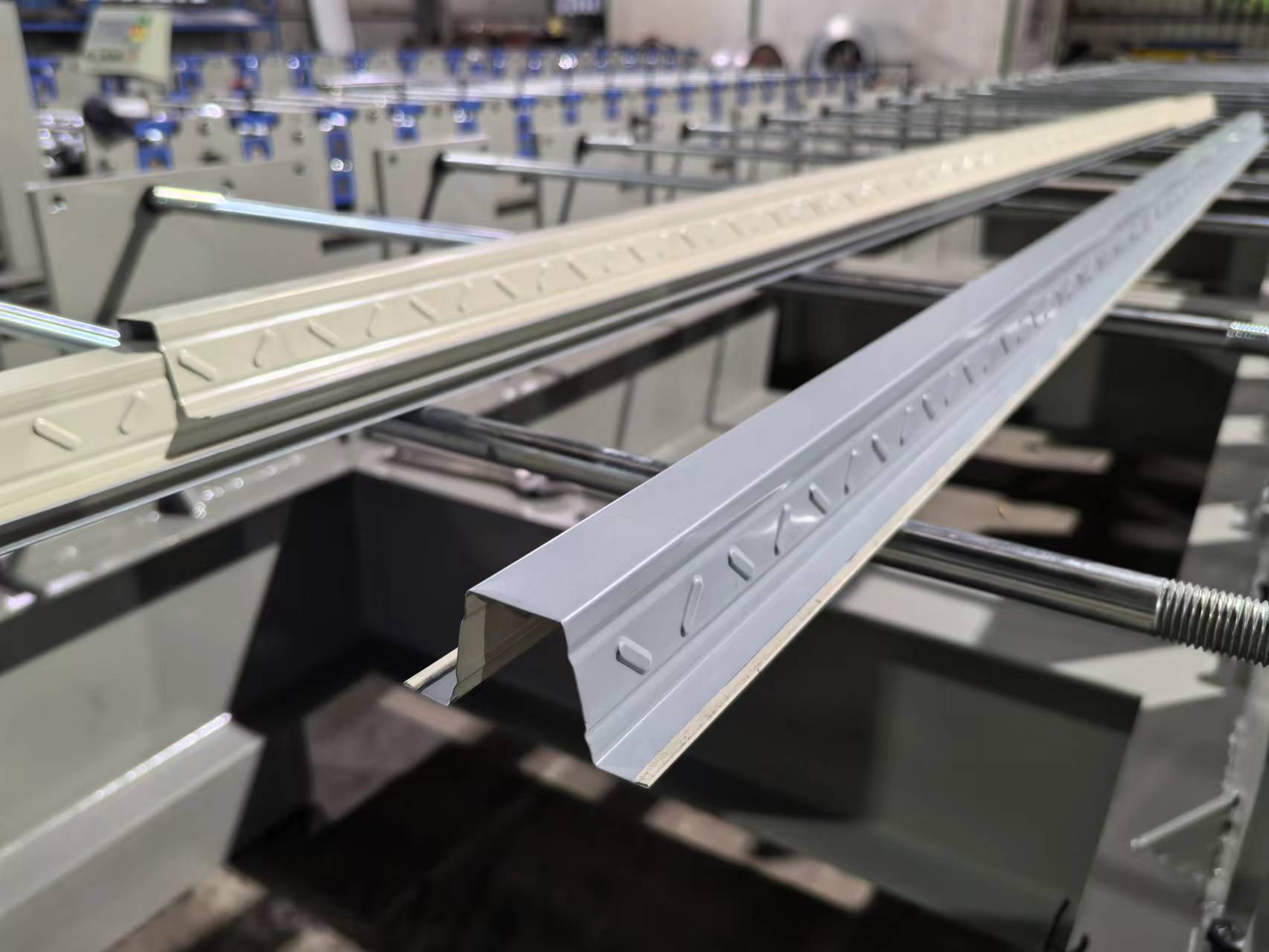

Light steel keel is an incredibly strong and versatile material made from galvanized steel strip or sheet steel. Keels manufactured by Beenew features both strong and resilient. Our machines may be small in size, but their rational design allows for smooth and accurate keel production. That makes the keels easy to install, making it a fantastic option for a wide range of projects. This light keel roll forming machine is equipped with compression equipment, beautiful appearance and at the same time increase the strength of the keel itself.

Keel Machine

Details

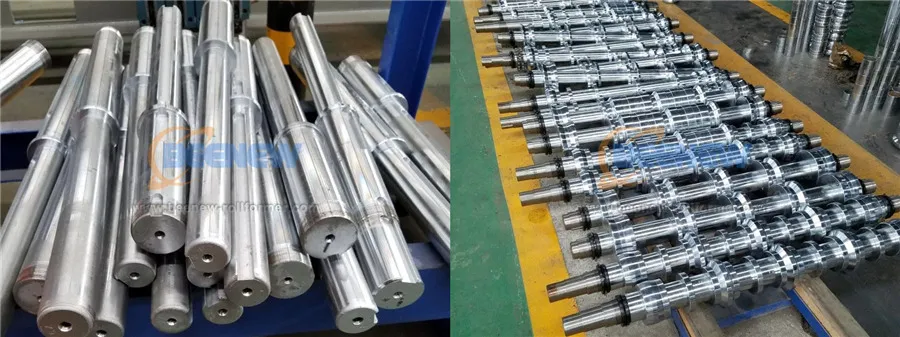

Shafts and rollers are the main components of a roll forming machine, and their strength as well as processing technology directly determine the quality of the finished rolled product. All shafts equipped with our keel machine are solid shafts with finishing treatment. All rollers are made of 45# steel with plating on the outer surface. There is no cutting corners, no substandard products, which makes our machines durable!
