R Panel Machine

The R-Panel Metal Roof Machine is the ultimate solution for your metal roofing needs. This innovative machine offers a long-lasting metal roofing option that is designed for durability and performance. Its user-friendly design ensures easy installation, making it a perfect choice for both local and commercial roofing systems. By utilizing the R-Panel Metal Roof Machine, you can significantly cut down on labor, time, and disposal costs, streamlining your roofing projects without compromising quality.

Beenew R Panel Machine Parameter

Beenew R Panel Machine Feature

The R panel is the most commonly used through-fastened panels in our roof panel series. Among our products, the R panel machine stands out as one of our most mature and reliable offerings, known for its stable performance.

What sets our 840 model apart from other roof panel machines is its advanced configuration. This machine is designed not only to roll-form color steel panels but also to handle stainless steel panels with ease.

Key enhancements include a robust machine frame, increased roller diameter, superior roller materials, optimized forming stations, and higher motor power. All these results in faster forming speed. These upgrades significantly strengthen the machine's capabilities, ensuring versatility, ease of operation, and an extended service life.

With the R-Roof Panel Machine, you can truly experience a multi-functional tool that meets diverse roofing needs efficiently.

Beenew R Panel Machine Detials

Profile of the R Panel Machine:

This R Panel is equipped with both manual front shear and hydraulic post cutter.

The front shear allows for easy cutting of scrap material, ensuring efficient use of resources and minimizing waste. The post-forming shear is designed for precise length cutting, providing consistent and accurate panel lengths for your roofing needs.

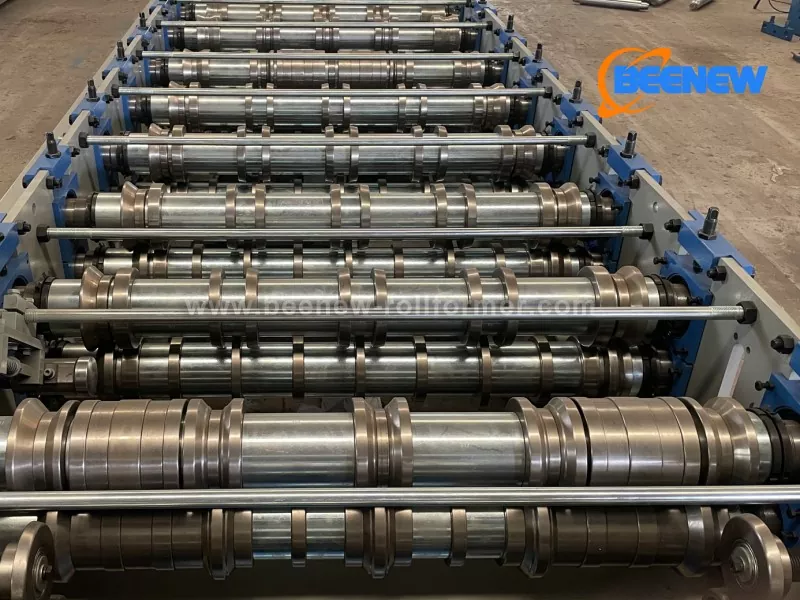

The R-Roof Panel Machine features high-quality components designed for optimal performance and durability: shaft diameter up to 75mm, and rib forming diameter 95mm.

All shafts are made from 40Cr steel, which has been finely processed and ground to achieve a smooth outer surface. This premium material choice contributes to the overall strength and longevity of the machine.

The rollers are further processed from Cr12 steel, featuring both internal and external grinding and then coated with hard chrome and then subjected to a brushed polishing treatment. This process not only enhances the appearance but also provides superior resistance to wear and corrosion.

FAQ：

1.What is the main materials used for roll forming?

Any malleable metal can be used in roll forming machine, but the most commonly used materials are: galvanized sheet, stainless steel, and aluminum sheet.

2.What is a roll forming machine used for?

Roll forming machine are commonly used for forming metal construction materials such as metal roofing and wall panels, shutter door strips and frames, floor decks, CZ purlins, gutters and downpipes, etc.

3.Is R panel the same with PBR panel?

They are very similar but have slight difference. The PBR panel have a larger overlap section, which is called purlin bearing leg. It enhances the panel strength and makes the panel more weather tight. It is more suitable for roof while R panel is mainly used for wall or siding applications.
