Steel Silo Roll Forming Machine

Steel silo roll forming machine is mainly used to produce silo panels which is one of the main materials for building a silo. Therefore, silo forming machine is widely used in agriculture and industry field.

Send Inquiry

Product Description

The steel silo panels produced by silo roll forming machine are actually corrugated panels. But they have bigger wave than the normal corrugated sheets. Silo is an important container which used to store bulk materials such as grain, feed, concrete and other agricultural and industrial products. Therefore, it must be strong and durable. With its precision engineering, the steel silo panel forming machine of beenew can ensure consistent panel dimensions and shapes, optimizing material usage and enhancing structural integrity.

Product Parameter

Item	Parameters
Material Thickness	1.0-2.0mm
Motor Power	30kwServo Motor
Roller Material	45# steel，fine-finished and hard chromecoated and polished
Hydra Motor	7.5KW

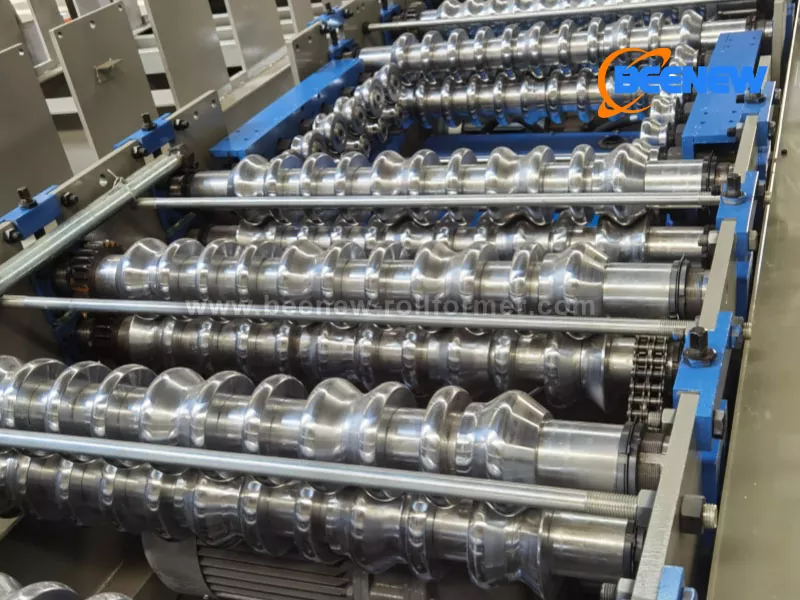

Station	20 stations
Shaft Diameter	105mm
Forming Speed	16-18M/Min
Tolerance	±1mm

Profile Drawing

Steel Silo Roll Forming Machine

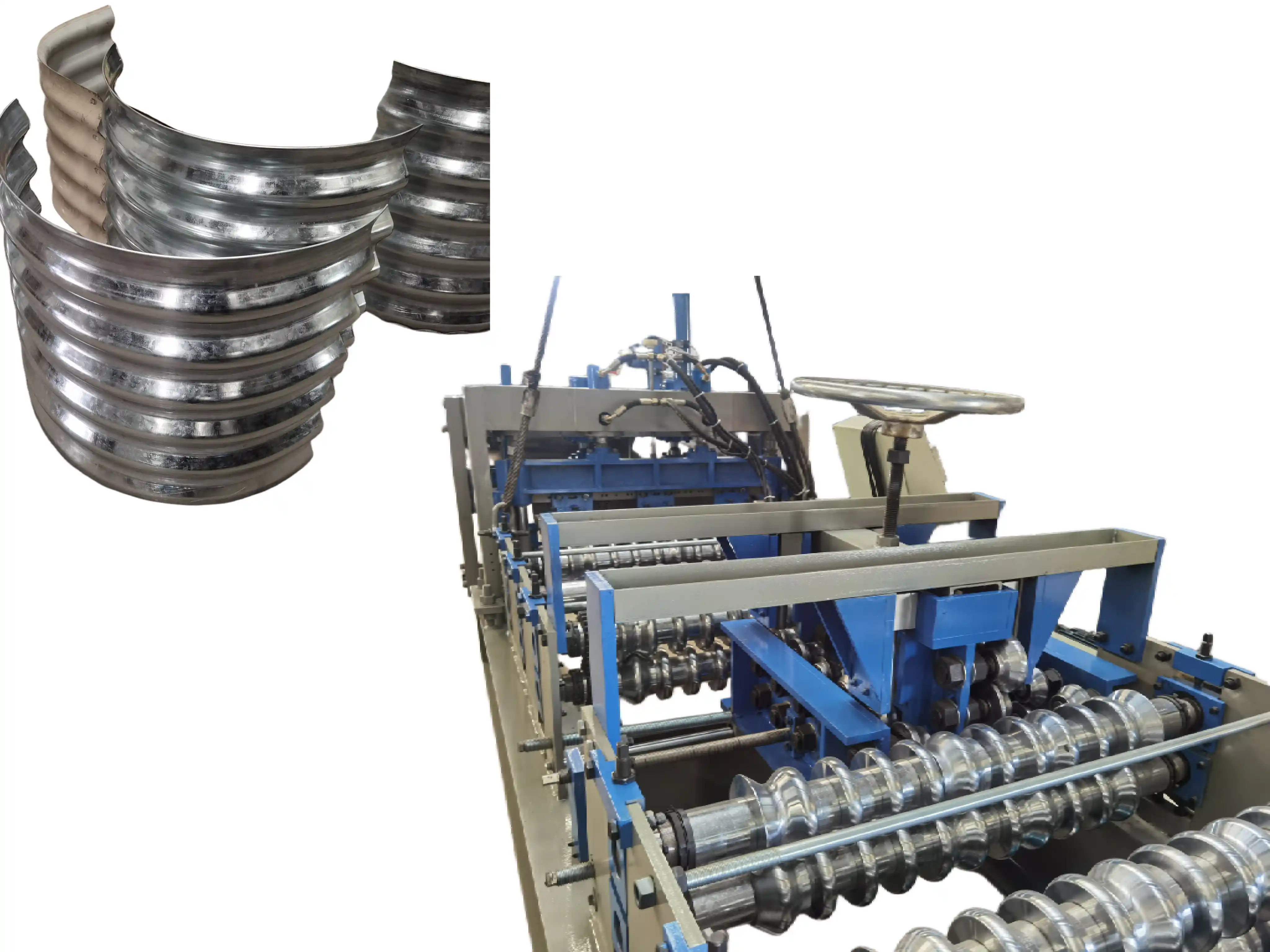

Finished Product

Silo Roll Forming Machine

Details

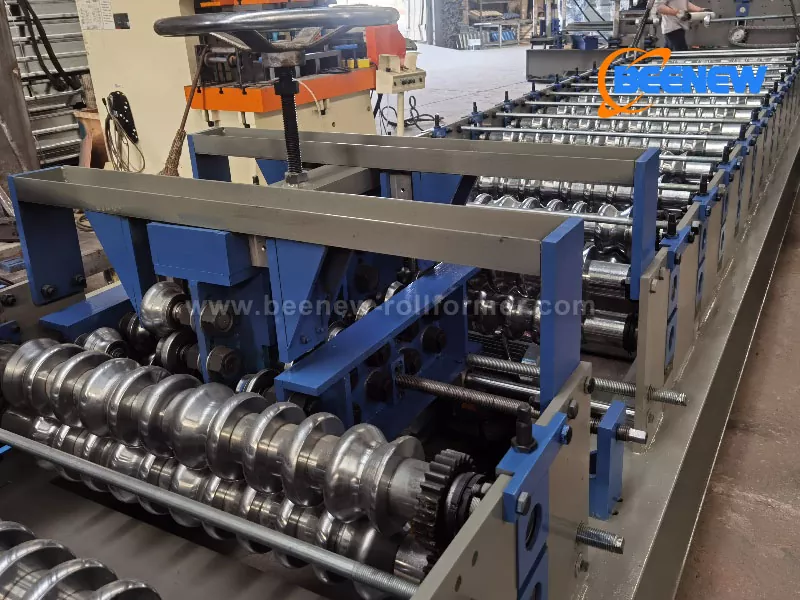

The whole silo roll forming machine set includes a corrugated panel roll former, punching devices to punch holes at the head, tail and sides of the steel silo plate, and a curving device to make the flat corrugated panel into a curved plate.

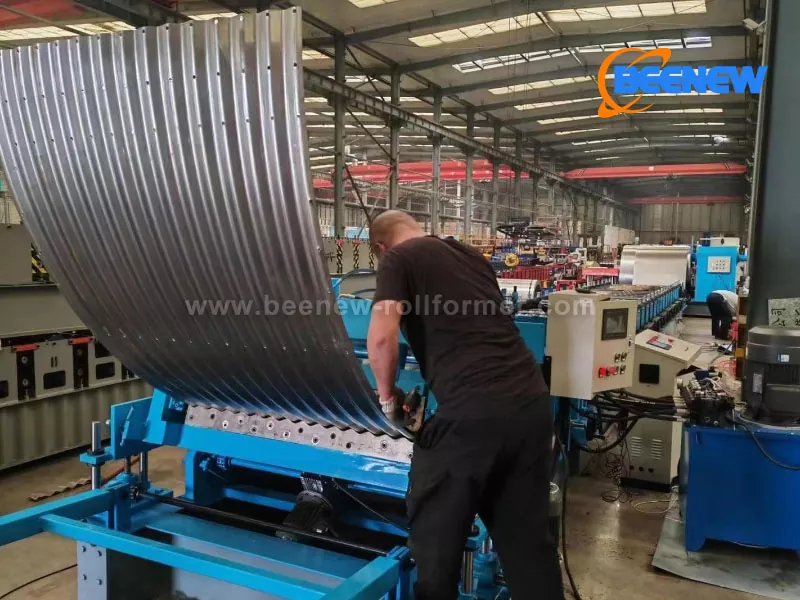

Integrated curving equipment:

-Curve right after forming;

-Curving radius is adjustable, roll curving direction is upward;

-Roll curving radius is controlled by servo motor, servo motor 1.0kw;

-Different roll curving radius can be set by setting the touch screen and PLC parameters

Roll Forming Equipment

The silo is mainly composed of silo panels, silo roofing panels and upright post, so this steel silo roll forming machine must to be used with silo upright post roll forming machine and silo roof forming machine.
